Waterproof Micro Switch
-

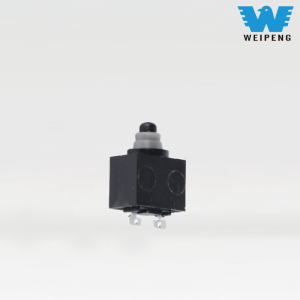

FSK-21-D-004
Current: 0.1A
Voltage:DC 12V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

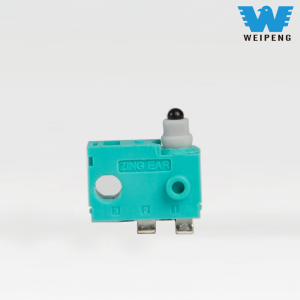

FSK-20-586
Current: 0.1A/10mA
Voltage:DC 14V/30V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

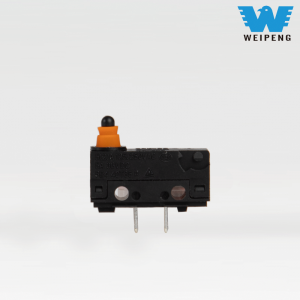

FSK-26-D-002
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Travel：1.6-2.4mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
-

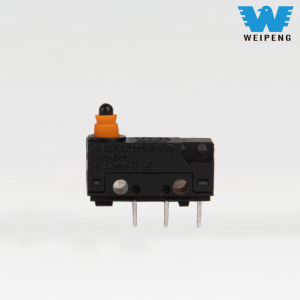

FSK-26-D-001
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Position: 11.7±0.4mm
Operation Travel：1.6-2.4mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
-

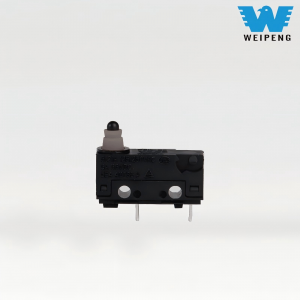

FSK-26-D-005
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Position: 11.7±0.4mm
Operation Travel：1.6-2.4mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
-

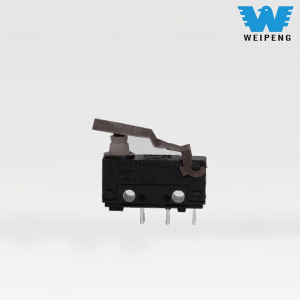

FSK-26-D-004
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Position: 12.6±1mm
Operation Travel：1.8-2.0mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
-

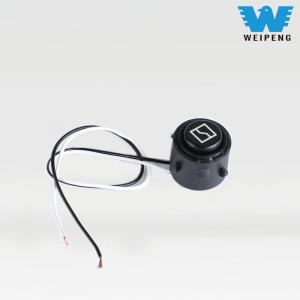

FSK-24-D-001
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 40000 Times
Operation Force：8±3N
Operation Travel：1.5±0.4mm
Electrical Rating : 50mA 12V DC
Protection Grade: IP67
-

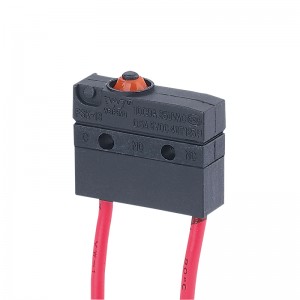

FSK-18-T-023
Current: 0.1A/ 0.5A/ 5(2)A/ 10(3)A
Voltage:AC 125V/250V, DC 5V/36V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

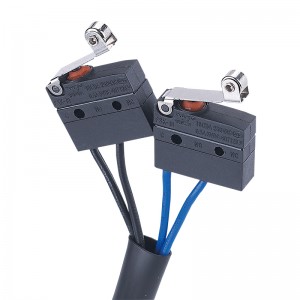

FSK-18-D-090
Current: 0.1A/ 0.5A/ 5(2)A/ 10(3)A
Voltage:AC 125V/250V, DC 5V/36V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

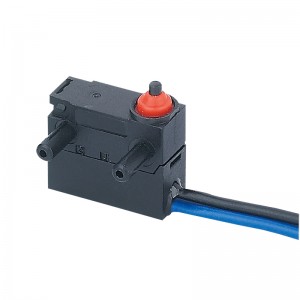

FSK-20-002
Current: 0.1A, 3A,
Voltage:AC 125V/250V, DC 12V/24V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

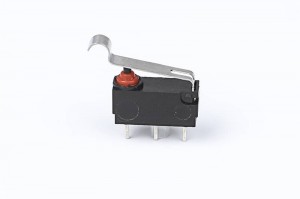

FSK-20 3
Current: 0.1A, 3A,
Voltage:AC 125V/250V, DC 12V/24V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -

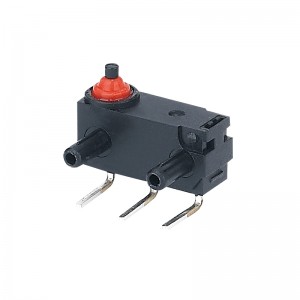

FSK-20-009
Current: 0.1A, 3A,
Voltage:AC 125V/250V, DC 12V/24V
Approved: UL,cUL(CSA),VDE,ENEC,CQC
