Ultra Subminiature Basic Switch
-
HK-16-1-000
Type: Micro Switch
Mechanical Life：About 0.1 Million Times
Operation Force：1.0-3.0N
Total Travel Position：1.0-2.5mm
Pins: 2pin/3pin
Rating : 5A GP 1/4HP 250VAC 0T180
Safety Approvals: UL、CSA、VDE、ENEC、CE
-
HK-16-2-101
Type: Micro Switch
Mechanical Life：About 0.1 Million Times
Operation Force：1.0-3.0N
Total Travel Position：1.0-2.5mm
Pins: 2pin/3pin
Rating : 5A GP 1/4HP 250VAC 0T180
Safety Approvals: UL、CSA、VDE、ENEC、CE
-
HK-25-D-007
Type: Micro Switch
Mechanical Life：About 1 Million Times
Electrical Life: 100E4/50E4 Cycles
Operation Force：5.0N Max
Total Travel Position：16.8±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

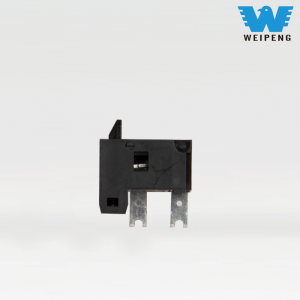

HK-25-T-008
Type: Micro Switch
Mechanical Life：About 1 Million Times
Operation Force：5.0N Max
Total Travel Position：16.8±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

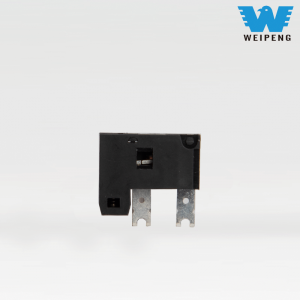

HK-25-T-009
Type: Micro Switch
Mechanical Life：About 1 Million Times
Operation Force：5.0N Max
Total Travel Position：16.8±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

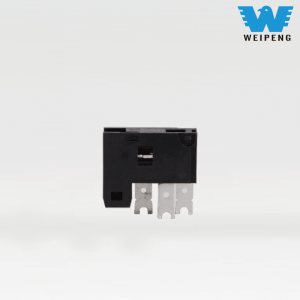

HK-25-011
Type: Micro Switch
Mechanical Life：About 1 Million Times
Electrical Life: 100E4/50E4 Cycles
Operation Force：5.0N Max
Total Travel Position：16.8±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

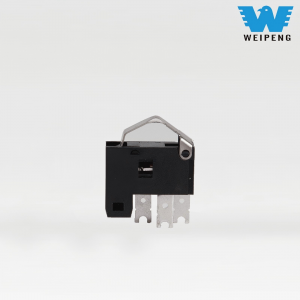

HK-25-010
Type: Micro Switch
Mechanical Life：About 1 Million Times
Electrical Life: 100E4/50E4 Cycles
Operation Force：5.0N Max
Total Travel Position：15±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

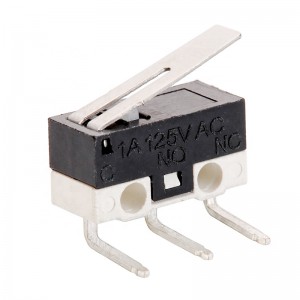

HK-10-1A-001
Current:0.1A/1A/3A,
Voltage:125V/250V 40T85
Approved: UL, VDE, CQC -

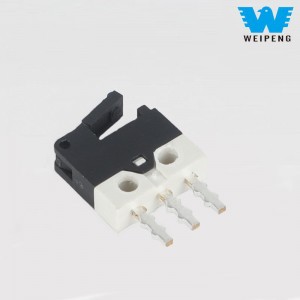

HK-08-005
1.Small volume, the base and terminal are integrated
2.Leaf spring structure, small gap and high sensitivity
3. with Straight terminal
-

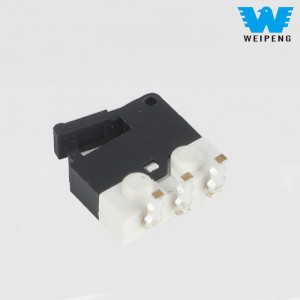

HK-08-003
1.Small volume, the base and terminal are integrated
2.Leaf spring structure, small gap and high sensitivity
3. with right 90 angle terminal
-

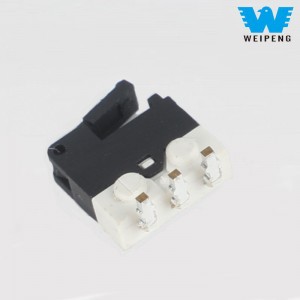

HK-08-002
1.Small volume, the base and terminal are integrated
2.Leaf spring structure, small gap and high sensitivity -
HK-10-3A-001
Current:0.1A/1A/3A,
Voltage:125V/250V 40T85
Approved: UL, VDE, CQC
