Products
-

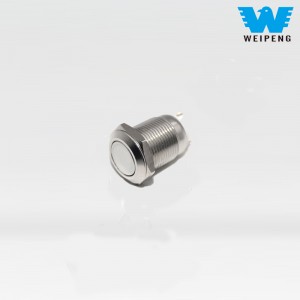

DM12
Current: 2A
Voltage: 36V
Protection level：IP66
Approved: UL,cUL(CSA),TUV,CQC
-

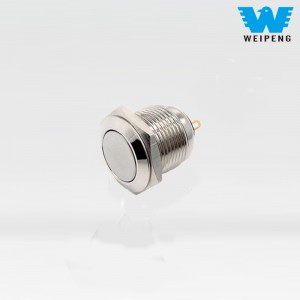

DM16-12
Current: 20mA
Voltage: DC 250V
Approved: UL,cUL(CSA),TUV,CQC -

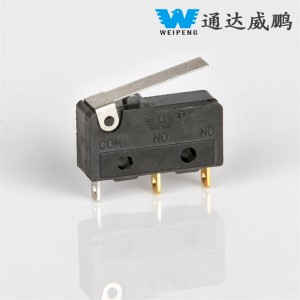

HK-04-DJ-001
Type: Micro Switch
Mechanical Life：≥ 0.1 Million Times
Operation Force：≥0.45N
Rating : 3A GP 1/4HP 250VAC 0T105
Safety Approvals: UL、CSA、VDE、ENEC、CE
-
HK-14-1N-000
Type: Micro Switch
Mechanical Life：About 0.1 Million Times
Operation Force：≥0.45N
Total Travel Position：0.4-0.7mm
Pins: 2pin/3pin
Rating : 3A GP 1/4HP 250VAC 0T105
Safety Approvals: UL、CSA、VDE、ENEC、CE
-

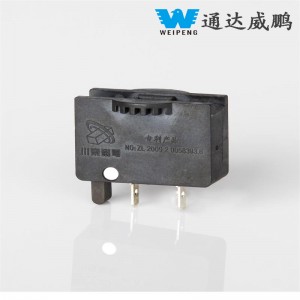

HK-16-2-101
Type: Micro Switch
Mechanical Life：About 0.1 Million Times
Operation Force：1.0-3.0N
Total Travel Position：1.0-2.5mm
Pins: 2pin/3pin
Rating : 5A GP 1/4HP 250VAC 0T180
Safety Approvals: UL、CSA、VDE、ENEC、CE
-

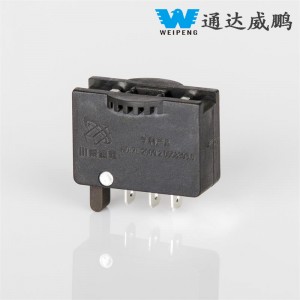

HK-16-1-000
Type: Micro Switch
Mechanical Life：About 0.1 Million Times
Operation Force：1.0-3.0N
Total Travel Position：1.0-2.5mm
Pins: 2pin/3pin
Rating : 5A GP 1/4HP 250VAC 0T180
Safety Approvals: UL、CSA、VDE、ENEC、CE
-

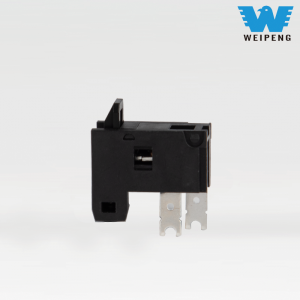

HK-25-D-007
Type: Micro Switch
Mechanical Life：About 1 Million Times
Electrical Life: 100E4/50E4 Cycles
Operation Force：5.0N Max
Total Travel Position：16.8±0.3mm
Pins: 2pin/3pin
Rating : 1A/3A GP 1/4HP 24VDC 40T85
-

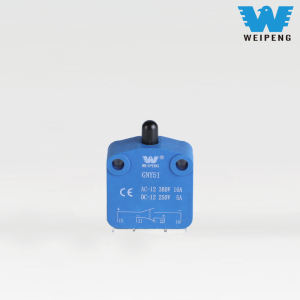

GNY51-4-400
Current:16A
Voltage:AC 250V
Approved: UL,cUL(CSA),TUV,CQC -
FSK-21-D-004
Current: 0.1A
Voltage:DC 12V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -
FSK-20-586
Current: 0.1A/10mA
Voltage:DC 14V/30V
Approved: UL,cUL(CSA),VDE,ENEC,CQC -
FSK-26-D-002
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Travel：1.6-2.4mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
-
FSK-26-D-001
Type: FSK WaterProof Micro Switch Series
Mechanical Life：About 1 Million Times
Electrical Lifetime: About 50000 Times
Operation Force：1.5N Max
Operation Position: 11.7±0.4mm
Operation Travel：1.6-2.4mm
Pins: 2pin/3pin/Wires
Electrical Rating : 4A 30V DC 40T85
Protection Grade: IP67
