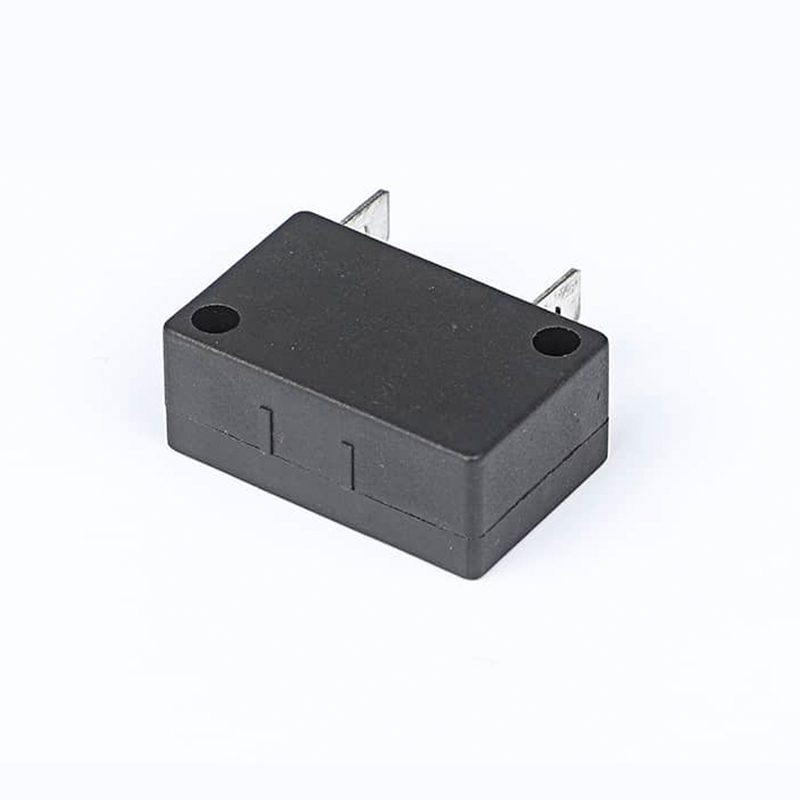

In the realm of precise industrial automation and control systems, the Micro Magnetic Switch serves as a critical component for position detection and signal transmission. Represented by models such as the HK-14E-2T-003, this device is a compact, normally closed (T105) switch rated for 10A at 250V AC. Its fundamental role is to actuate reliably in the presence of a magnetic field, commonly used in conjunction with pneumatic or hydraulic cylinders to detect piston position, thereby enabling automated sequencing and safety interlocks.
The core operational principle of the Micro Magnetic Switch is its magnetic reed mechanism. When a magnet attached to a moving part (cylinder piston) approaches, the internal reeds within the switch make or break contact. For the HK-14E-2T-003 variant, this results in a change of state in a normally closed circuit. It is imperative that the applied voltage and current do not exceed its rated specifications of 10A and 250V AC to ensure electrical safety and long-term operational reliability.
A crucial safety and functional guideline for the Micro Magnetic Switch is that it must never be connected directly to a power source. It must always be connected in series with a load, a relay coil or an input module of a programmable logic controller (PLC). This configuration protects the switch’s contacts from potential damage caused by inrush currents and ensures stable signal conditioning. When utilizing a DC power supply, correct polarity must be observed—typically connecting the red wire to the positive terminal—to guarantee proper function.
Installation and environmental considerations are paramount for optimal performance. The Micro Magnetic Switch should be shielded from strong external magnetic fields and high-current conductors to prevent false triggering or operational interference. Selecting appropriate mounting accessories, specific brackets or housings compatible with the actuator cylinder (series DNC/DNCI), is essential to ensure correct alignment with the piston magnet and secure mechanical attachment.
The Micro Magnetic Switch is a vital, yet sensitive, component designed for reliable detection in automated machinery. Its effectiveness hinges on adherence to electrical ratings, proper circuit integration with a load, careful environmental shielding, and correct mechanical mounting. By following these key principles outlined for models like the HK-14E-2T-003, engineers can ensure this switch delivers precise, durable, and safe performance in diverse industrial control applications.
