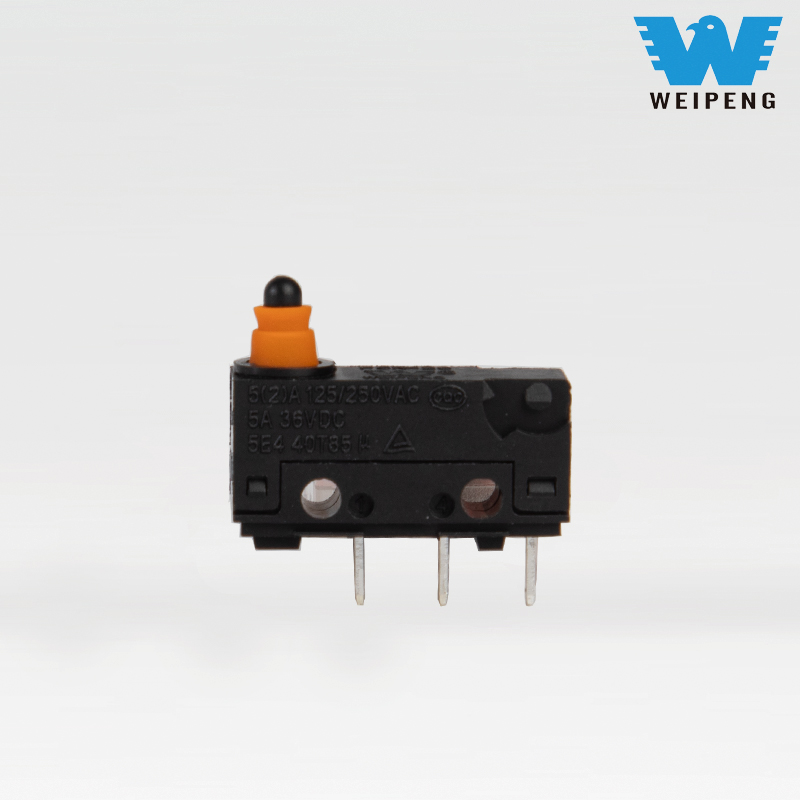

In the field of industrial control systems and electronic equipment, the performance of core components significantly impacts overall operational reliability. The Waterproof Micro Switch serves as a fundamental control element across various applications, particularly where environmental resilience is required. Represented by model FSK-26-D-001, this high-button type switch is specifically designed for demanding environments such as forklift control handles and outdoor equipment, where consistent performance under challenging conditions is essential for both safety and functionality.
The mechanical design of this Waterproof Micro Switch demonstrates careful engineering consideration. Featuring a high-button actuator configuration, it provides reliable operation in mechanical control systems. Key specifications include an operating force not exceeding 1.5N, an operating position of 11.7±0.4mm, and a travel range between 1.6mm and 2.4mm, ensuring precise tactile feedback during engagement. With a mechanical lifespan of approximately 1 million cycles and an electrical endurance of 50,000 operations, this component offers sustained performance suitable for frequent actuation requirements.
A crucial characteristic of this microswitch is its IP67-rated environmental protection. This certification confirms complete protection against dust ingress and the ability to withstand temporary immersion in water up to one meter deep. Such robust sealing makes this Waterproof Micro Switch particularly suitable for applications in harsh environments, including agricultural machinery, automotive systems, and industrial washing equipment, where exposure to moisture, dust, and other contaminants would compromise the performance of standard switches.
Electrically, the switch maintains a 5A current rating with specific operational capabilities of 4A at 30V DC. These parameters make it appropriate for various control circuits in automotive, industrial, and consumer applications. Available in 2-pin, 3-pin, and wired configurations, it offers design engineers flexibility in system integration while maintaining reliable electrical performance across different installation scenarios.
This high-button Waterproof Micro Switch represents a balanced integration of mechanical precision, electrical reliability, and environmental durability. Its combination of defined operational parameters, long service life, and IP67 protection rating makes it a technically sound choice for engineers designing systems that require dependable switching performance in challenging operating conditions, particularly where moisture resistance and mechanical longevity are primary considerations.
