A Waterproof Micro Switch is a critical component designed to provide reliable electrical circuit control in environments where exposure to moisture, dust, or other contaminants may compromise performance. Its primary function is to ensure precise actuation and consistent operation in household appliances, thereby enhancing both product safety and operational lifespan. Understanding its key features is essential for engineers and designers when specifying components for applications such as electric fans, heaters, and air purifiers.

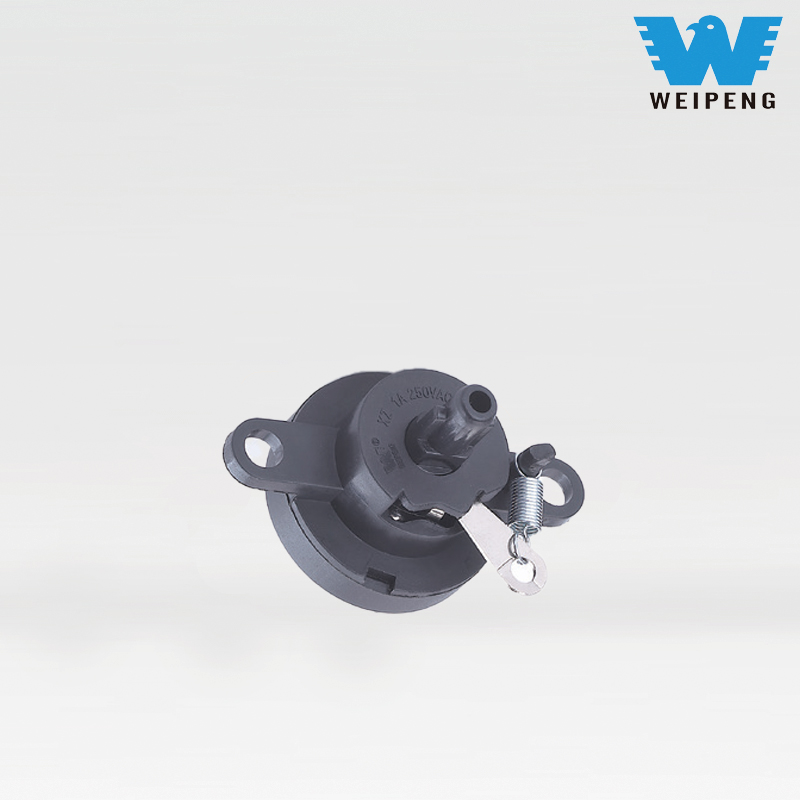

This particular model, identified as XZ-4D-001, belongs to the FSK series of Waterproof Micro Switch products. It features a rotary mechanism with gear adjustment for accurate angle setting, typically set at a position angle of 45 degrees. This design enables stable and repeatable switching, making it particularly suitable for devices requiring controlled rotational movement. The compact yet robust construction is engineered to maintain its sealed integrity throughout its operational life.
The switch is built for durability, with a mechanical lifespan of 100,000 cycles and an electrical lifespan of 10,000 cycles under its rated load. This performance ensures long-term reliability in frequently used appliances. Its electrical rating is specified at 1A 250V AC, with contact resistance maintained below 50mΩ to ensure efficient current flow and minimize energy loss during operation.
In terms of safety and insulation, the Waterproof Micro Switch meets stringent standards. It withstands a high-potential test of 1500V between terminals and 3000V between terminals and casing, each for 5 seconds. It maintains an insulation resistance exceeding 100MΩ when tested at 500V DC. Its Comparative Tracking Index (PTI) rating of 175V indicates strong resistance to surface electrical tracking, a vital feature for maintaining performance in humid or condensing environments.
Selecting an appropriate Waterproof Micro Switch involves careful consideration of its mechanical endurance, electrical specifications, and environmental protection capabilities. The XZ-4D-001 model exemplifies a balanced design that integrates a high cycle life, reliable electrical performance, and robust insulation characteristics. For professionals aiming to enhance appliance safety and durability, these technical parameters provide a solid foundation for component selection, ensuring reliable switching performance even in challenging operating conditions.
