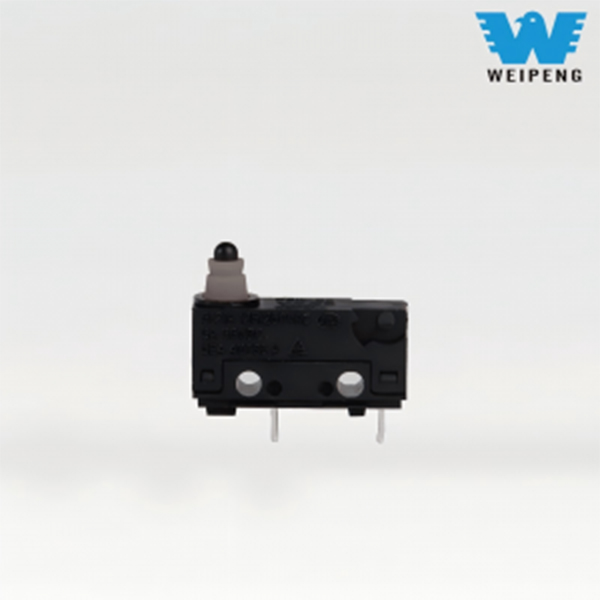

In demanding applications where environmental resilience and electrical reliability are paramount, the 21 Amp Micro Switch series, specifically the FSK-26-D-005 model, stands as a critical component. Engineered for harsh conditions, this waterproof micro switch (IP67 rated) delivers dependable operation in the presence of dust, moisture, and splashing liquids, making it ideal for automotive, industrial machinery, outdoor equipment, and appliance control systems. Its core strength lies in achieving a remarkable balance between long-term mechanical endurance and precise electrical switching performance.
The FSK-26-D-005 exemplifies the 21 Amp Micro Switch series’ commitment to durability. It boasts an impressive mechanical life expectancy of approximately 1 million cycles, ensuring consistent physical operation over extended periods. Complementing this, its electrical life is rated at approximately 50,000 cycles under its specified electrical load. The switch is designed to handle an electrical rating of 4A at 30V DC (40T85), providing robust switching capability for a wide range of low-voltage DC control circuits within its designated operational envelope. The “21 Amp” designation signifies the series’ robust construction lineage.
Precise actuation is a hallmark of this micro switch. It features a 21 Amp Micro Switch light operating force of just 1.5N, facilitating easy and reliable triggering by mechanisms, levers, or actuators. The critical travel parameters are meticulously defined: the maximum operating position is 11.7mm ±0.4mm, while the operating travel range is tightly controlled between 1.6mm and 2.4mm.
Installation versatility is addressed through multiple termination options. The FSK-26-D-005 21 Amp Micro Switch is available with 2-pin, 3-pin configurations, or pre-attached wires, offering flexibility for various PCB mounting or direct wiring requirements in different assembly scenarios. This adaptability simplifies integration into diverse system designs. Furthermore, the IP67 protection rating guarantees that the switch remains fully functional and protected against the ingress of dust and temporary immersion in water up to 1 meter for 30 minutes, a crucial feature for challenging operating environments.
For engineers and designers seeking a micro switch that combines proven environmental protection (IP67), exceptional mechanical longevity (1M cycles), precise actuation characteristics (1.5N, defined travel), and reliable low-voltage DC switching capacity (4A 30V DC), the FSK-26-D-005 from the 21 Amp Micro Switch series presents an outstanding solution.
