HK-25-T-009

Micro Safety Switch for Car Anti-Vibration and Stability Micro Switch

Type: Micro Switch

Mechanical Life:About 1 Million Times

Operation Force:5.0N Max

Total Travel Position:16.8±0.3mm

Pins:  2pin/3pin

Rating :  1A/3A GP 1/4HP 24VDC 40T85


HK-25-T-009

Product Tags

The micro switch can basically change the contact at the same position even if the open/close operation process is continuous, so the position detection error is small, and it can be used in the scope of application that requires precision machining. This is also a unique advantage of microswitches with a snap-action mechanism.

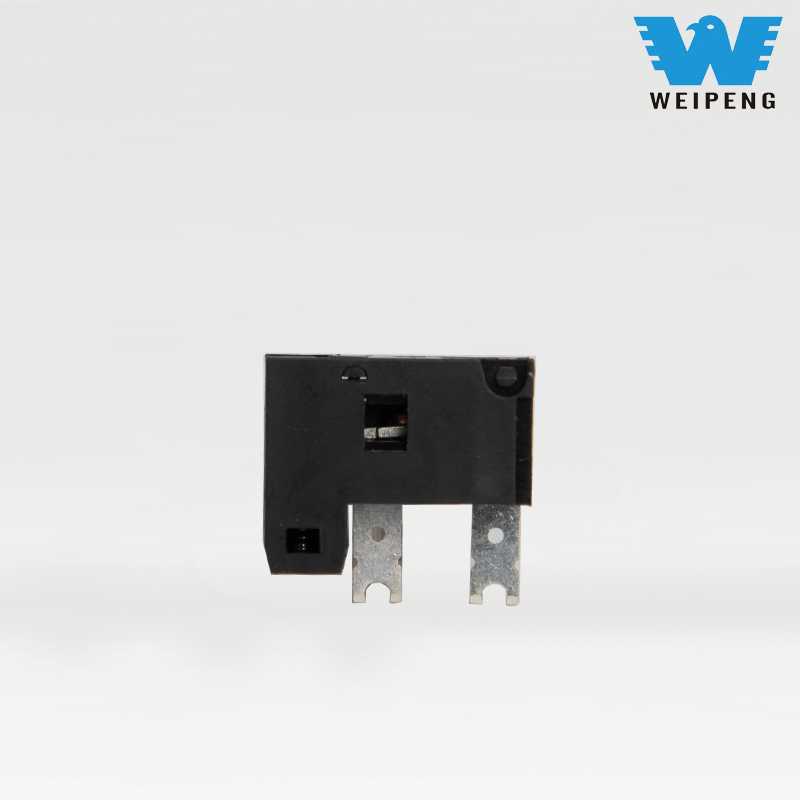

HK-25-T-009 Micro Safety Switch

afcc19085d0adb02d7a22a9510d2e063706881b8

3e387950189a02039c990f0782d72fbee0f173d2
