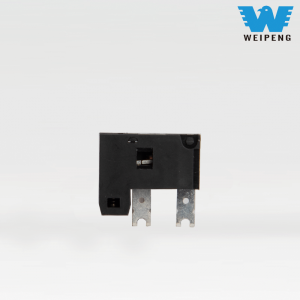

HK-25-010

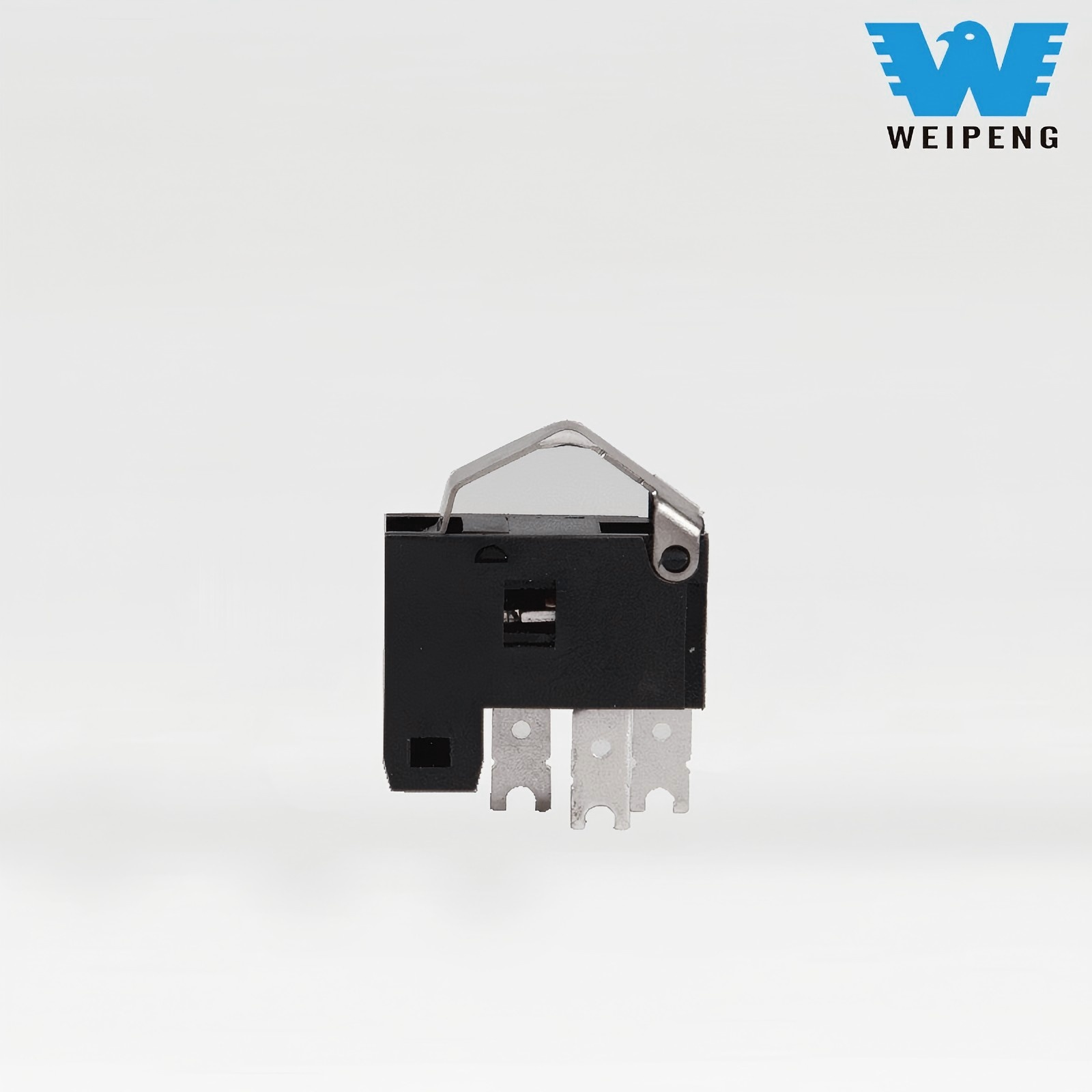

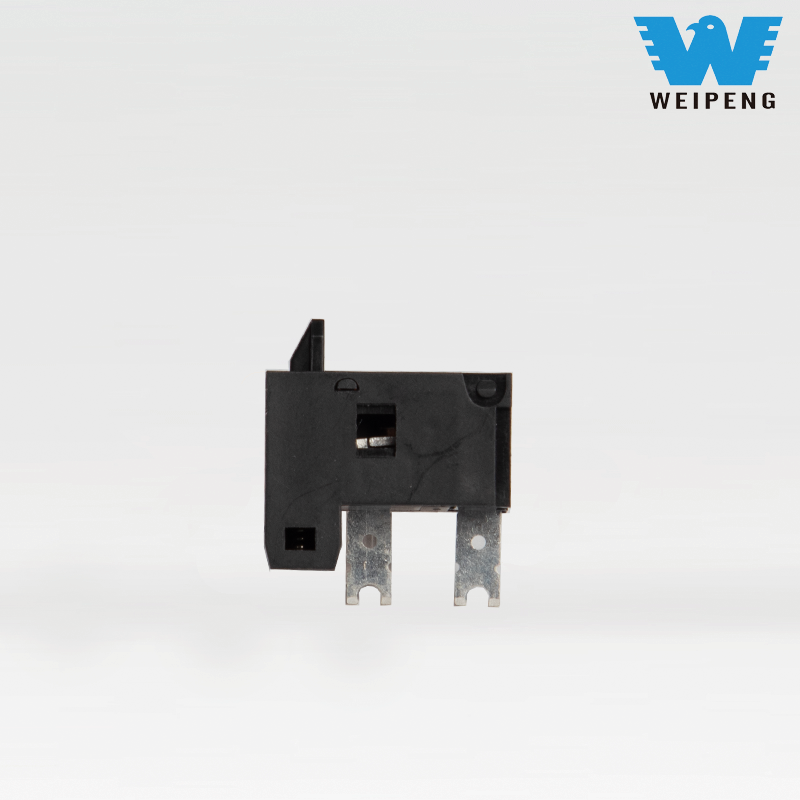

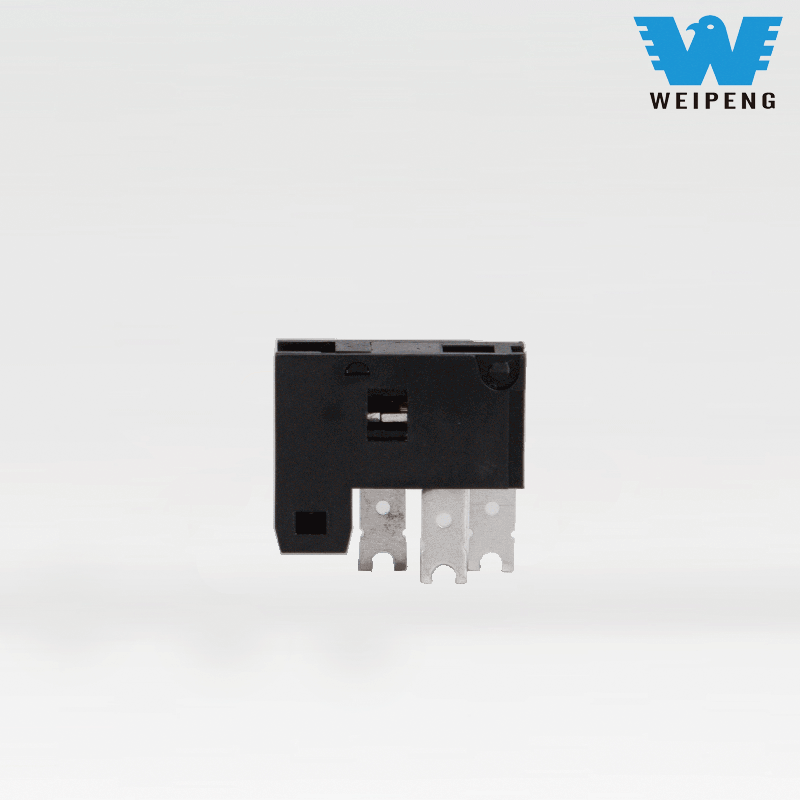

Car Steering Wheel Gear Adjustment Micro Switch Automatic Reset Micro Switch
The micro switch can basically change the contact at the same position even if the open/close operation process is continuous, so the position detection error is small, and it can be used in the scope of application that requires precision machining. This is also a unique advantage of microswitches with a snap-action mechanism.
| Items | Standard |
| Rated working voltage¤t | 1A24V,3A24V |
| Contact resistance | less than or equal to 20mΩ |
| Insulation resistance | great than or equal to 100MΩ |
| Withstand Voltage | 1500VDC |
| Operating temperature range | -40°C to 85°C |
| Mechanical life | 3,000,000 Cycles |
| Lifetime | 1000000 Cycles |
| flame retardancy | 94V0 |
| Environmental humidity | 45%~95% |
| Body material | PA00 |
| contact point material | silver |
| Glowing wire test | 750 °C 850°C |
