FSK-26-D-004

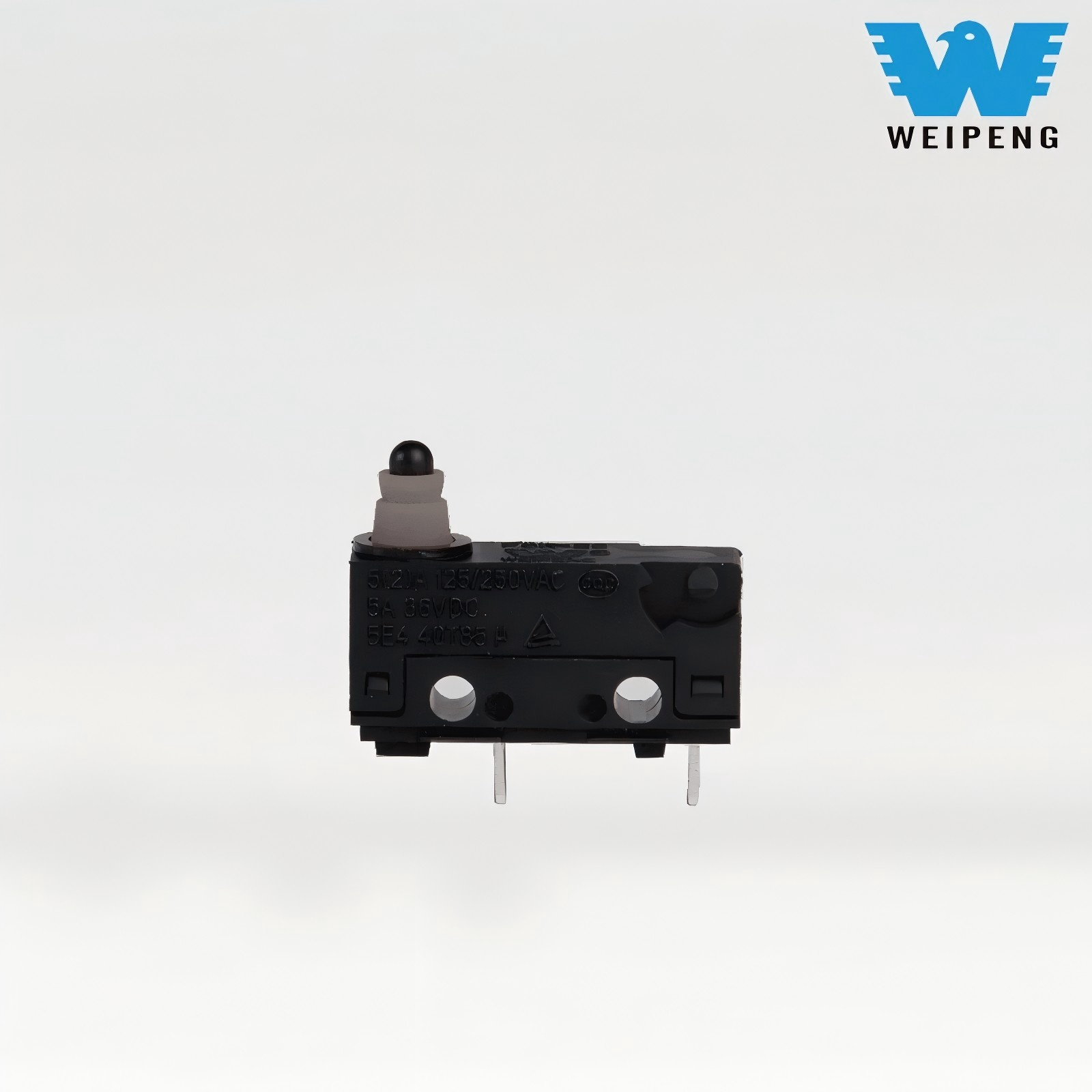

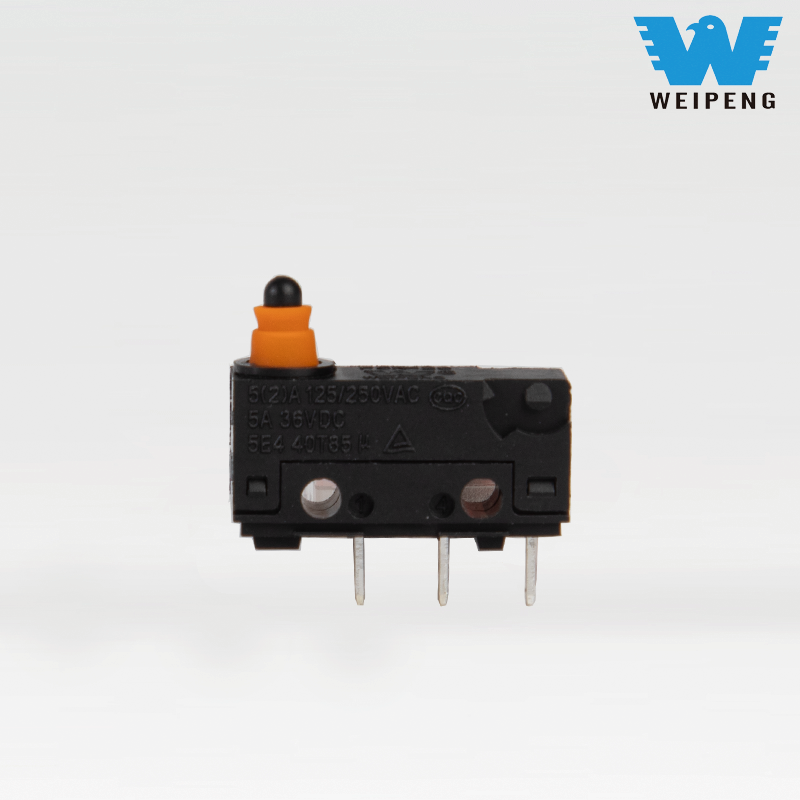

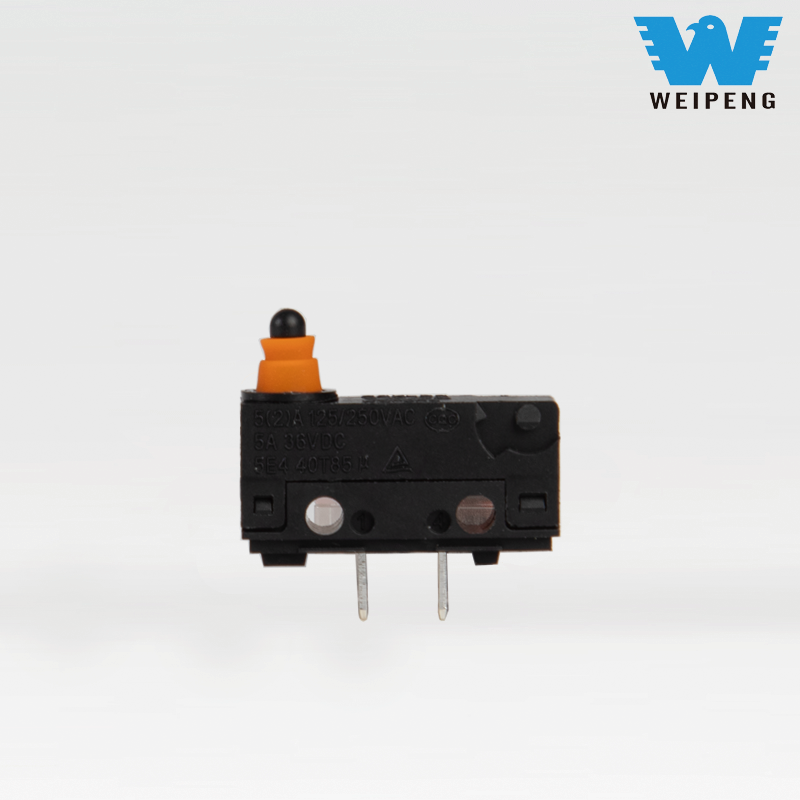

Sand Ice Machine Waterproof Micro Switch Electronic Lock Micro Switch

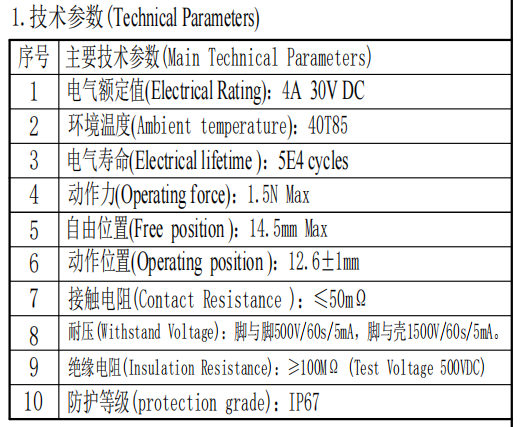

Type: FSK WaterProof Micro Switch Series

Mechanical Life:About 1 Million Times

Electrical Lifetime:  About 50000 Times

Operation Force:1.5N Max

Operation Position:  12.6±1mm

Operation Travel:1.8-2.0mm

Pins:  2pin/3pin/Wires

Electrical Rating :  4A 30V DC 40T85

Protection Grade:  IP67


FSK-26-D-004

Product Tags

Waterproof micro switch is a kind of micro switch with waterproof performance, which can work normally in wet or water.Waterproof micro switches are usually made of waterproof materials, which have good sealing performance and can prevent moisture from penetrating into the inside of the switch.The waterproof micro switch has small size and sensitive trigger force, suitable for various compact application scenarios.The waterproof micro switch has stable electrical performance and can maintain reliable contact and disconnection functions in wet and humid environments.

FSK-26-D-004 Waterproof Micro Switch Electronic Lock Micro Switch

FSK-26-D-004

FSK-26-D-004
